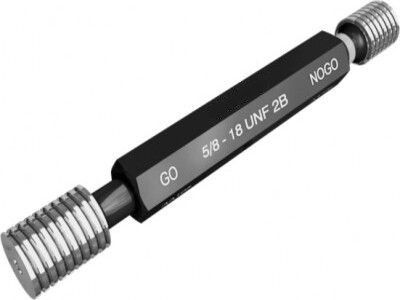

UNIFIED THREAD GAUGES

Unified Threads are used for general purpose fastening applications for Imperial system of units.

Specification

Basic Dimensions:	ANSI/ASME B 1.2-1983.Unfied Gauges Basic Dimensions as per BS 1580 Part 1 & 2 – 2007
Gauging Practice:	As per BS 919 Part 1-2007 are manufactured if requested by customers

Manufacturing range

• Thread Plug & Ring Gauges from No. 2 (0.086″) to 8″
