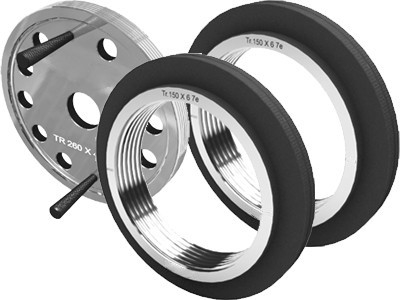

TRAPEZOIDAL THREAD GAUGES

Trapezoidal Threads are used for translation motion in machine tools like lead screws, where rapid movement is required or in screw jacks, where load to be shared is more.

Specification

ISO Specifications:	Basic Dimensions: ISO 2903 – 1993, ISO 2904 – 1977 & Gauging Practice: DIN 103(9)-1985.
IS Specifications:	Basic Dimensions: IS 7008-1988, IS 7008(4)-1999 & Gauging Practice: DIN 103(9)-1985

Manufacturing range

• Trapezoidal Threads are used for translation motion in machine tools like lead screws, where rapid movement is required or in screw jacks, where load to be shared is more.
