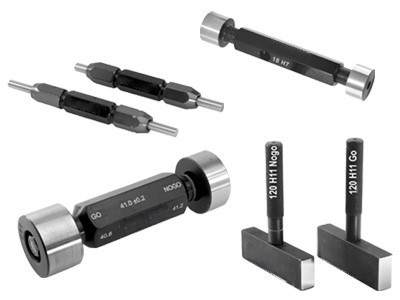

PLAIN PLUG GAUGES

Plain Plug Gauges are used for attribute Inspection of Plain Internal Diameter measurement.

Specification

Basic Dimensions:	ISO 286 Part 1 & 2 – 2010
Gauging practice:	DIN 7164 – 1966 & IS 7859-1975.

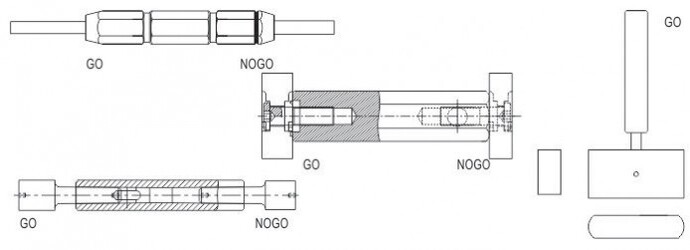

Manufacturing range

• Diameter 0.5 mm – 10mm: Supplied in reversible pin type Design.
• Diameter 10 mm – 40 mm: Supplied in Taperlock Design.
• Diameter 40 mm – 100 mm: Supplied in Trilock Design.
• Diameter 100mm – 300mm: Supplied in Plate type design.
